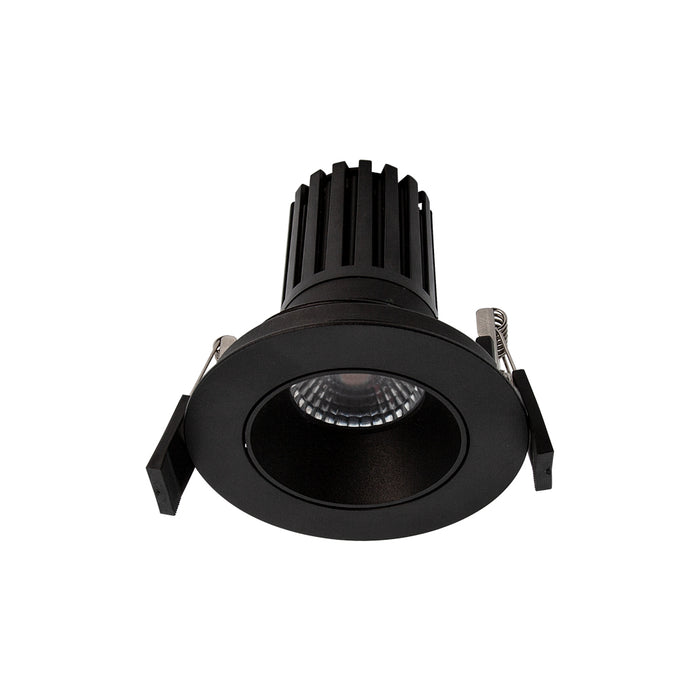

Design Standard Series X-Low Glare Downlight Tilt 9.5W 230mA CC IP54 IC-F/IC-4 c/w UID Dimmable Driver 4000K -Black V2

Technical Specification

9.5W Tilt Downlight – Black Trim | 4000K Natural White

Electrical & Optical

• Wattage: 9.5W

• Colour Temperature: 4000K Natural White

• Lumens: 850lm

• CRI: 90

• Beam Angle: 50°

• Binning: SDCM ≤3

• Lifespan: <60,000 hrs (L80)

• Driver Output Current: 230mA

• Electrical Class: Class II

• Dimming / Control: Dimmable

• TLAs: Flicker-free, PstLM ≤ 1.0; SVM ≤ 0.4

Mechanical & Build

• Cut Out: 85–92mm

• Diameter: 100mm

• Height: 101mm

• Tilt Angle: 32°

• Finish: Black

• Material: Aluminium, PC

• Ingress Protection: IP54

• Classification: IC-F / IC-4

• Clearances:

  • SCB (Side): 0mm

  • HCB (Height): 0mm

Installation & Features

• Driver: Included and pre-wired

• Features:

  • UID™ (Under Insulation Design)

  • Dimmable Driver Included

• Warranty: 5 Years
