Pluto Highbay with Sensor

Technical Specification

Pluto Highbay CCT / Wattage Selectable

Use:
• Application - Commercial
• Use - Interior
• Warranty - 5 Year
• IP Rating - IP65

Power:
• Voltage - 230V

Light output:
• Lamp Type – Integrated LED - SMD2835,

• Lumen: 170lm/w,
• Wattage Selectable - 200W | 160W | 120W
• Beam angle - 90° with PC Lens
• CCT Switchable - 4000K | 5000K | 6000K

Installation:
• Fixation: Horizontal in 90°with M10 hook
• Mounting height:  up to 15 meter high
• CCT Switchable - 4000K | 5000K | 6000K

Physical size:
•  φ330*182mm (152mm without sensor + 30mm Sensor)

Material:

 • Aluminum

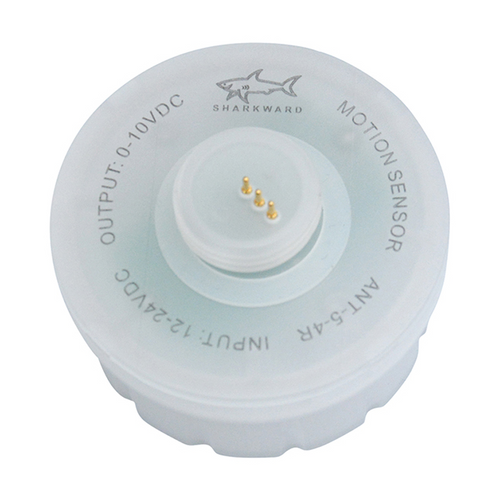

Sensor:

• Power Supply: 12V-24V DC, >50mA
• Dim Control Output :0-10V, max. 25mA sinking current
• HF System: 5.8GHz + 75MHz
• Transmission Power: <0.2mW

• Detection Radius: 20%, 50%, 75%, 100% ( 1-8m )
• Mounting Height: Max 40ft. (12 Meters)
• Time Setting: 10s | 1min | 5min | 10min | 15min | 20min | 30min | 60min
• Light Control: 24H 10LUX | 30LUX | 50LUX

• Temperature: -40°C - 70°C
• IP Rating: IP65
