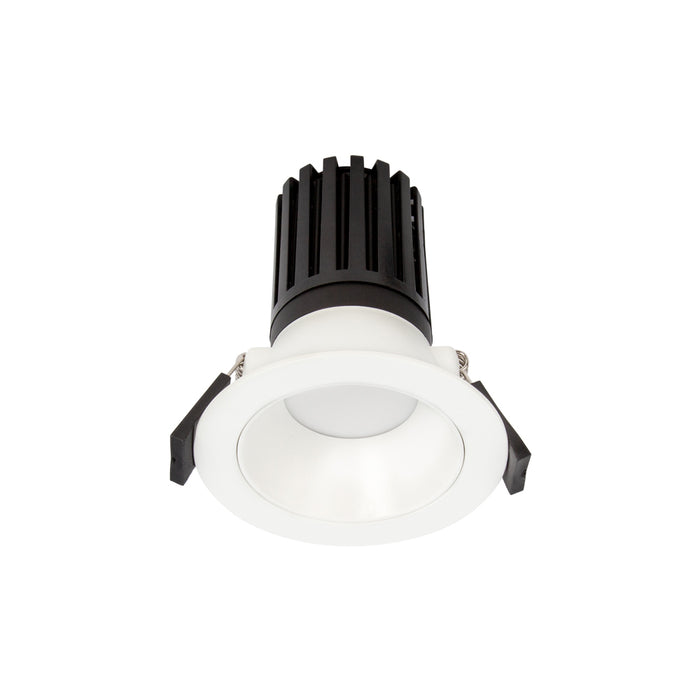

Design Standard 9.5W 230mA 4000K IP54 Recessed Downlight 90Deg c/w UID Dimmable Driver - White

Technical Specification

Downlight – 9.5W Retrofit LED (4000K)

• Watts: 9.5W

• Cut Out: 72–82mm (Suitable for Retrofit Applications)

• Diameter: 93mm

• Height: 104mm

• Colour Temperature: 4000K Natural White

• Lumens: 930lm

• CRI: 90

• Lifespan: 60,000hrs (L80 B10)

• Beam Angle: 90°

• Binning: SDCM 3

• Finish: White

• Material: Aluminium, PC

• Ingress Protection: IP54

• Classification: IC-F / IC-4

• SCB / HCB: 0mm

• Driver: Included (UID™ Under Insulation Dimmable Driver, pre-wired)

• Dimming / Control: Dimmable

• Driver Output Current: 230mA

• Electrical Class: Class II

• TLAs: “Flicker-free”, PstLM = 1.0; SVM = 0.4

• Warranty: 5 Year Warranty
