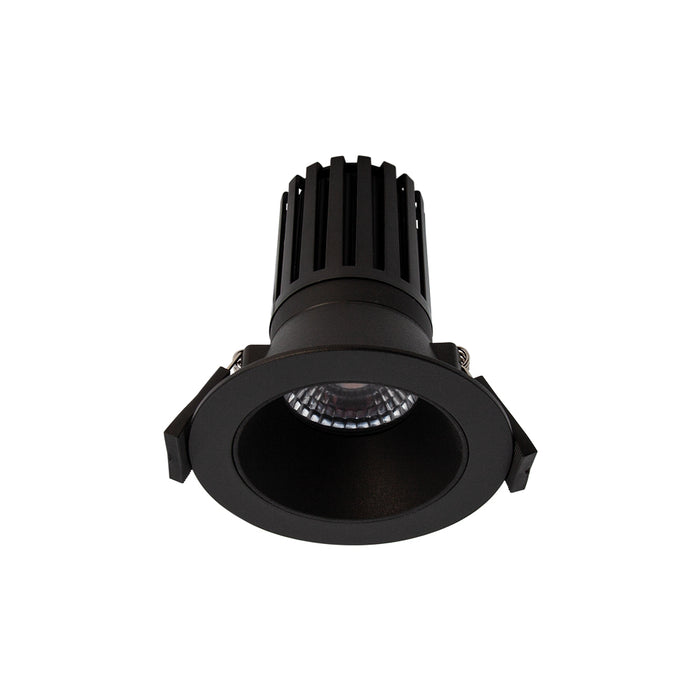

Design Standard Recessed Exterior 316 STS Downlight 9.5W 230mA IP65 IC-F/IC-4 c/w UID Dimmable Driver - Black
Technical Specification
Product Specifications
Wattage: 9.5W
Cut Out: 72–82mm (Suitable for retrofit applications)
Diameter: 93mm
Height: 104mm
Colour Temperature: 3000K Warm White
Lumen Output: 770lm
CRI: 90
Lifespan: 60,000hrs (L80 B30)
Beam Angle: 50°
Binning: SDCM 3
Finish: Black
Material: 316 Stainless Steel
Ingress Protection: IP65 (Front face only)
Classification: IC-F / IC-4
Side Clearance (SCB): 0mm
Height Clearance (HCB): 0mm
Driver: Included (Pre-wired)
Dimming / Control: Dimmable
Driver Output Current: 230mA
Electrical Class: Class II
TLAs (Temporal Light Artifacts):
-
Flicker-free
-
PstLM = 1.0
-
SVM = 0.4
Features:
-
Under insulation installation capable
-
Pre-wired for easy install
-
Durable 316 stainless steel front face
Warranty: 5 Year Warranty
