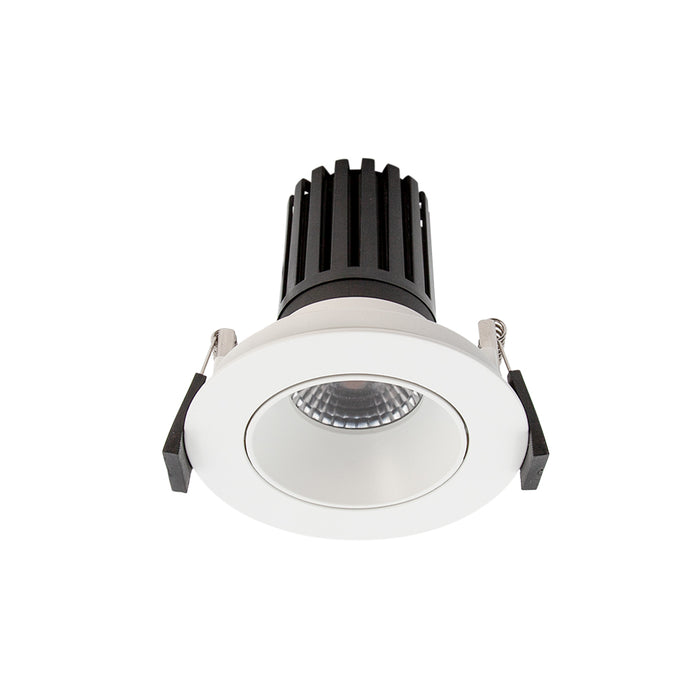

Design Standard Series X-Low Glare Downlight Tilt 9.5W 230mA CC IP54 IC-F/IC-4 c/w UID Dimmable Driver 2700K - White

Technical Specification

Adjustable Downlight Specification – 9.5W (Warm White)

• Watts: 9.5W

• Cut Out: 85–92mm

• Diameter: 100mm

• Height: 101mm

• Colour Temp: 2700K Warm White

• Lumens: 800lm

• CRI: 90

• Lifespan: <60,000hrs (L80)

• Beam Angle: 50°

• Binning: SDCM 3

• Tilt Angle: 32°

• Finish: White

• Material: Aluminium, PC

• Ingress Protection: IP54

• Classification: IC-F / IC-4

• Side Clearance (SCB): 0mm

• Height Clearance (HCB): 0mm

• Driver Included / Incorporated: Driver Included

• Dimming / Control: Dimmable

• Driver Output Current: 230mA

• Electrical Class: Class II

• TLAs (Temporal Light Artifacts):

  • Flicker-free

  • PstLM: = 1.0

  • SVM: = 0.4

• Features:

  • UID™ Under Insulation Dimmable Driver

  • Pre-wired for ease of installation

• Warranty: 5 Year Warranty
