Driver CV Pri:240V Sec:12V DC IP67 0-150W

Technical Specification

Product Sheet

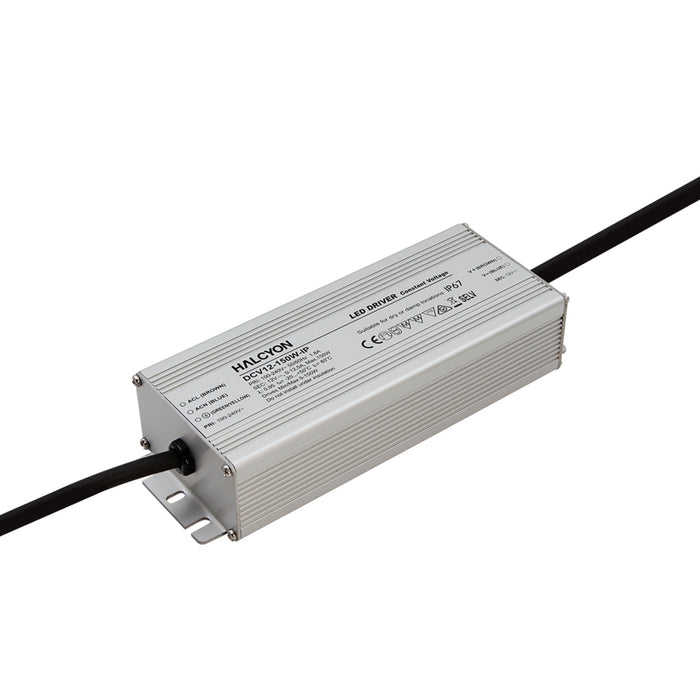

Model: DCC12500-IP67-12V-150W

Product Overview
The DCC12500-IP67-12V-150W is a robust, high-power LED driver designed for applications requiring consistent 12V output in demanding environments. With a wide input voltage range, flicker-free performance, and IP67-rated protection, it is ideal for outdoor or industrial use where durability and reliability are critical.

Specifications

• Power Range: 0W – 150W

• Input Voltage: 100–240V AC, 50/60Hz

• Output Current: 0 – 12.5A

• Output Voltage: 12V DC

• Dimming / Control: Non-Dimmable

• Electrical Class: Class I

• Ingress Protection: IP67

• Power Factor: 0.95

• Ambient Operating Temperature: -20°C to +50°C

• Temporal Light Artifacts: Flicker-free (PstLM = 1.0; SVM = 0.4)

• Dimensions: 191 mm (L) x 70 mm (W) x 40 mm (H)

Warranty
Backed by a 5-year warranty covering defects in materials and workmanship under standard operating conditions.
