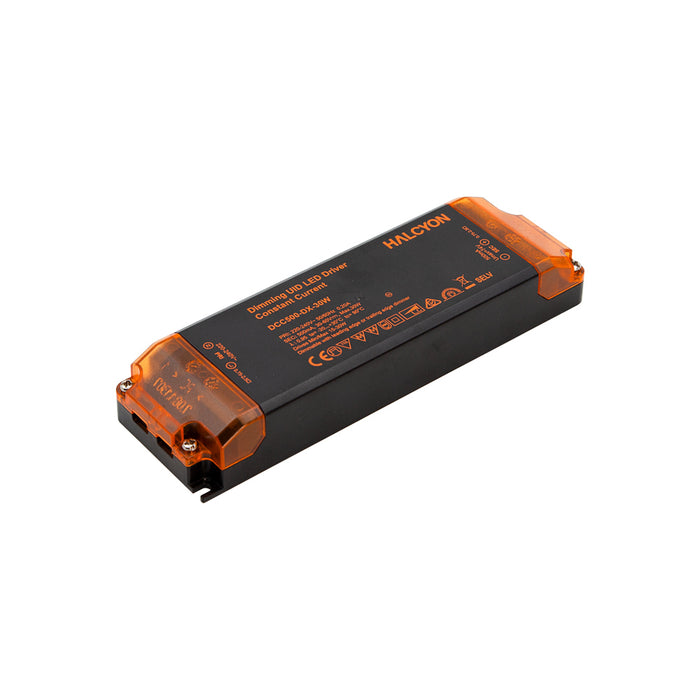

Driver High Performance LED Dimmable UID Constant Current Pri:240V Sec:30-60V 500mA 15-30W DX Series 2S

Technical Specification

The DCC500500-DX-3060W-IP is a high-quality LED driver designed for efficient and reliable performance in lighting systems. It supports a wide power range with dimming capability, offering consistent output across various applications.

• Wattage: 15W – 30W

• Input Voltage: 220–240V AC, 50/60Hz

• Driver Output Current: 500mA

• Driver Output Voltage: 30 – 60V

• Dimming / Control: Dimmable

• Electrical Class: Class II

• Ingress Protection: IP20

Physical Characteristics

• Length: 166 mm

• Width: 52 mm

• Height: 24 mm

• Material: Self-extinguishing plastic housing

Features

Part of the DX Series, this driver is built for durability and performance. It delivers smooth dimming functionality and is constructed using high-quality, fire-retardant materials suitable for indoor environments.

Warranty

Covered by a 5-year warranty for protection against manufacturing defects and performance issues under normal usage conditions.
