Driver High Performance LED Dimmable UID Constant Current Pri:240V Sec14-28V 700mA 10.5-20W DX Series 2S
Technical Specification
Product Sheet

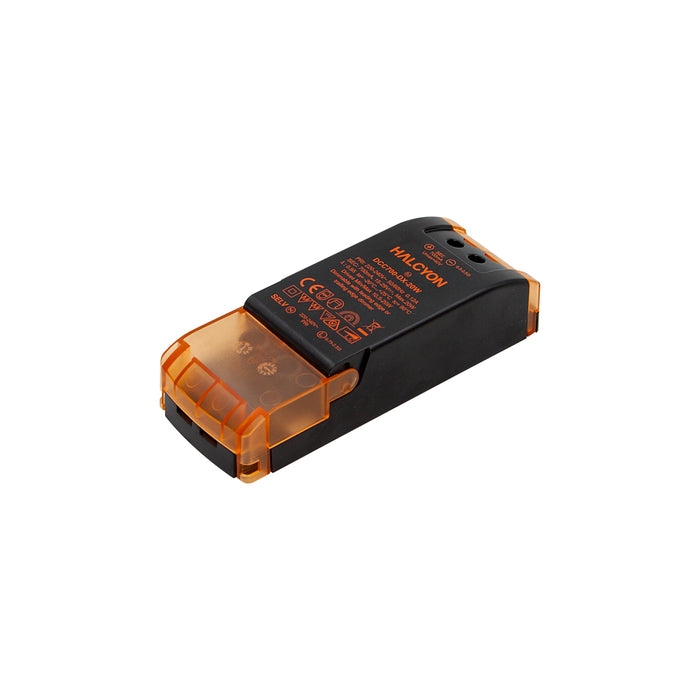

Model: DCC700700-DX-1529W
Technical Specifications
The DCC700700-DX-1529W is a dimmable LED driver built for dependable and energy-efficient performance. Designed for use in indoor lighting applications, it offers stable output and is engineered with safety, efficiency, and low flicker in mind.
-
Wattage: 10.5W – 20W
-
Input Voltage: 220–240V AC, 50/60Hz
-
Driver Output Current: 700mA
-
Driver Output Voltage: 15 – 29V
-
Dimming / Control: Dimmable
-
Electrical Class: Class II
-
Ingress Protection: IP20
-
Power Factor: 0.95
-
Ambient Operating Temperature: -20°C to +25°C
-
Material: Self-extinguishing plastic housing
-
Temporal Light Artifacts: Flicker-free (PstLM = 1.0; SVM = 0.4)
Features
Part of the DX Series, this driver is designed to deliver consistent lighting performance while maintaining compatibility with dimming systems. Its low flicker and high efficiency make it ideal for residential, retail, and commercial settings.
Warranty
Covered by a 5-year warranty, offering protection against manufacturing defects and performance issues under standard operating conditions.
