"Driver LED Constant Current Pri:240V Sec:29-57V DC 700mA 20-40W "

Technical Specification

Product Sheet

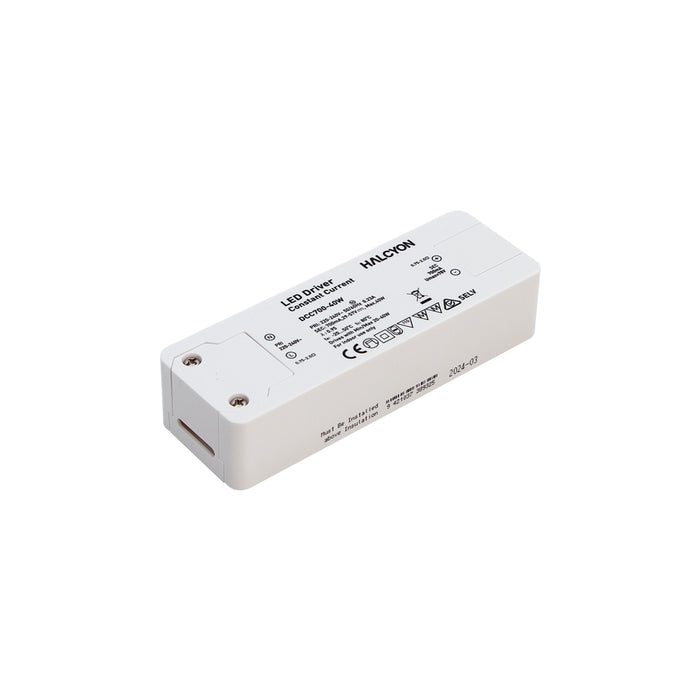

Model: DCC700700-IP20-2957W

Technical Specifications

The DCC700700-IP20-2957W is a high-efficiency, non-dimmable LED driver designed for reliable performance in indoor lighting applications. With a consistent output current and wide voltage range, it supports a variety of LED configurations.

• Wattage: 20W – 40W

• Input Voltage: 220–240V AC, 50/60Hz

• Driver Output Current: 700mA

• Driver Output Voltage: 29 – 57V

• Dimming / Control: Non-Dimmable

• Electrical Class: Class II

• Ingress Protection: IP20

Physical Characteristics

• Length: 127 mm

• Width: 43 mm

• Height: 28 mm

Warranty

This product includes a 5-year warranty covering manufacturing defects and performance issues under normal usage conditions.
