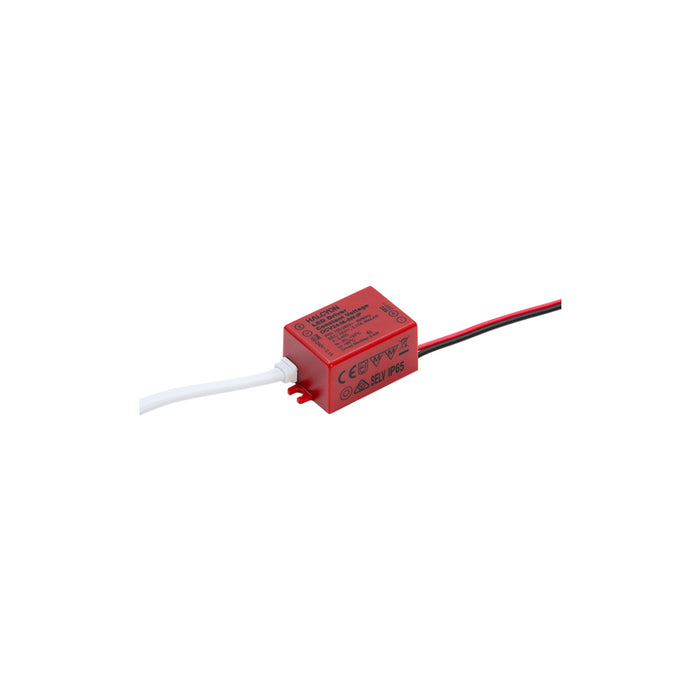

Driver Mini IP65 Constant Voltage Pri:240V Sec:24V DC 0-4W

Technical Specification

Product Overview
This ultra-compact, non-dimmable LED driver is designed for low-power 24V lighting applications. With a power range of 0W to 4W and a maximum output current of 0.17A, it is ideal for small-scale or specialized installations. Its IP65-rated housing provides strong protection against dust and moisture, making it suitable for both indoor and outdoor environments. The Class II design ensures double insulation and safe operation.

Specifications

• Power Output: 0W – 4W

• Input Voltage: 100–240V AC, 50/60Hz

• Output Voltage: 24V DC

• Output Current: 0 – 0.17A

• Dimming / Control: Non-Dimmable

• Ingress Protection: IP65

• Electrical Class: Class II

• Dimensions: 38 mm (L) x 27 mm (W) x 21 mm (H)

• Warranty: 5-Year Warranty
