Driver Pri Dim CC Pri:240V Sec:27-53V DC 850mA 23-45W - LED445 W46D

Technical Specification

Product Sheet

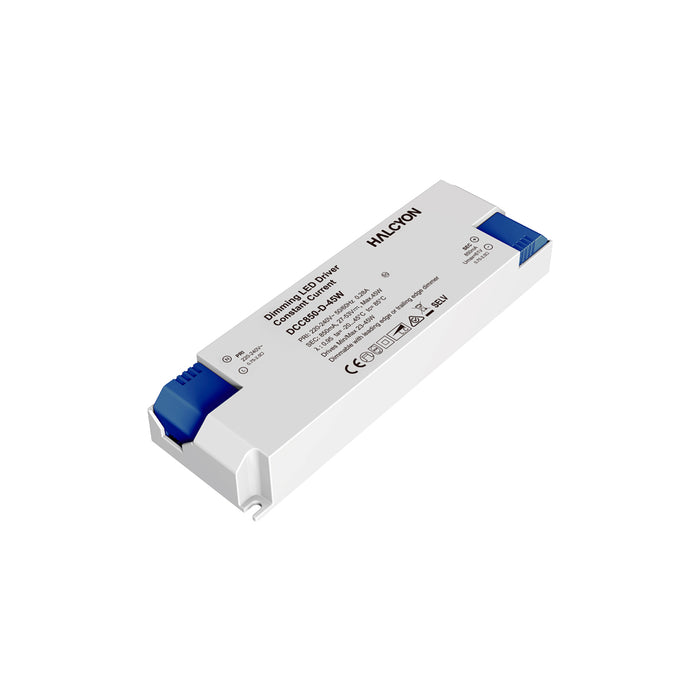

Model: DCC850850-PD-2753W

Product Overview
The DCC850850-PD-2753W is a high-efficiency, primary-dimmable LED driver designed for consistent and reliable performance in indoor lighting systems. It supports a wide output voltage range and delivers a stable 850mA output current, making it ideal for commercial and residential applications where dimming capability and safety compliance are essential.

Specifications

• Power Range: 23W – 45W

• Input Voltage: 220–240V AC, 50/60Hz

• Output Current: 850mA

• Output Voltage: 27 – 53V

• Dimming Control: Primary Dimmable

• Electrical Class: Class II

• Ingress Protection: IP20

• Material: Self-extinguishing plastic housing

• Dimensions: 166 mm (L) x 52 mm (W) x 25 mm (H)

Warranty
Includes a 5-year warranty covering manufacturing defects and ensuring reliable long-term performance.
