Driver Pri Dim CV Pri:240V Sec:12V DC 33-100W
Technical Specification
Product Sheet

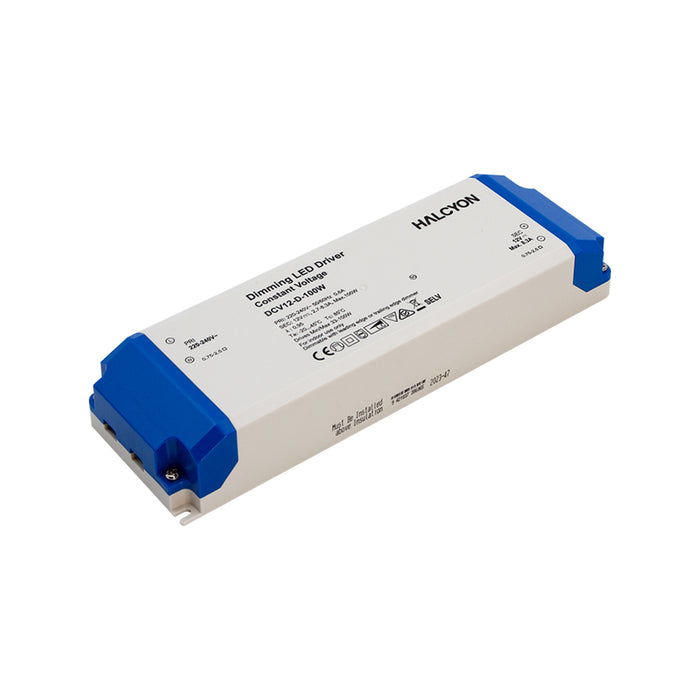

Model: DCC8300-IP20-12V-100W
Product Overview
The DCC8300-IP20-12V-100W is a high-output, primary dimmable LED driver designed for use in 12V lighting systems. Offering a wide current range of 2.7A to 8.3A and a consistent 12V DC output, this driver is ideal for demanding residential and commercial applications. Its compact design and Class II rating ensure safe and efficient operation in indoor environments.
Technical Specifications
-
Power Output: 33W – 100W
-
Input Voltage: 220–240V AC, 50/60Hz
-
Output Voltage: 12V DC
-
Output Current: 2.7 – 8.3A
-
Dimming / Control: Primary Dimmable
-
Electrical Class: Class II
-
Ingress Protection: IP20
-
Dimensions: 210 mm (Length) x 67 mm (Width) x 34 mm (Height)
Warranty
Supplied with a 5-year warranty covering defects in materials and workmanship under normal operating conditions.
